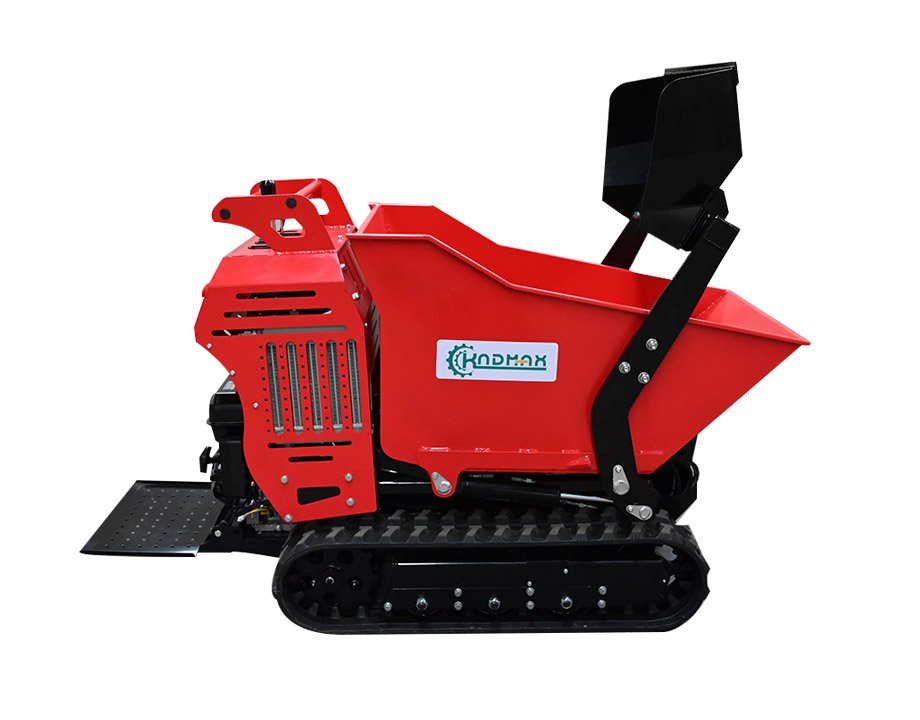

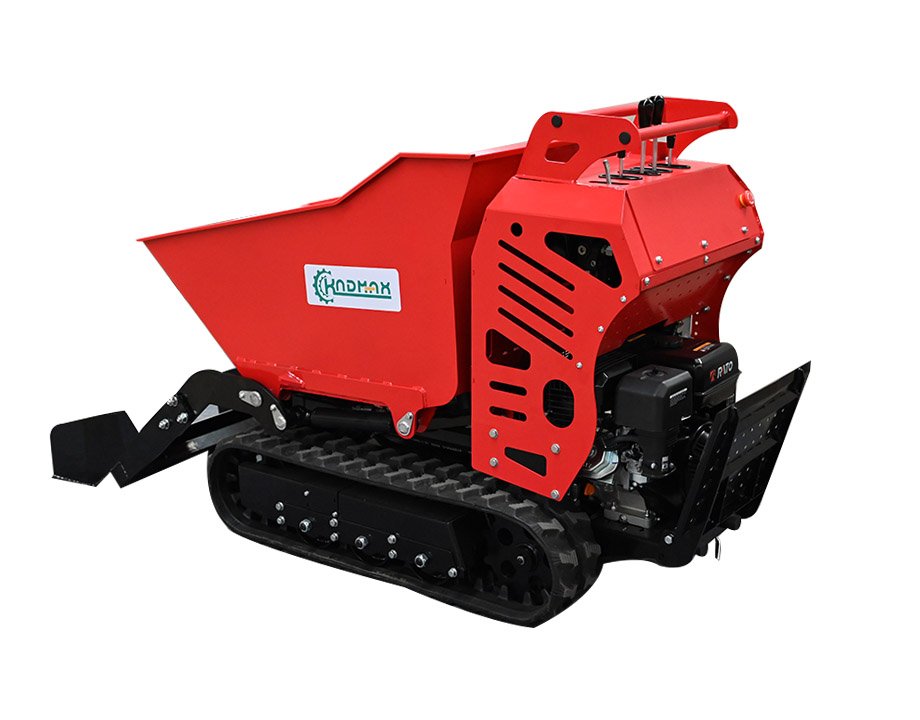

HCD500FL 带铲斗液压履带式自卸车

March 07, 2024

HCD500FL 带铲斗液压履带式自卸车



-1_0003_DSC_0020-1_0004_DSC_0019-1_0000_DSC_0024

All-terrain crawler dumper, the crawer dumper replaces traditional wheeled walking with rubber tracks,large carrying capacity,strong grip and low noise, at the same time, the crawler type walking device increases the contact area between the machine and the ground, Do not harm farmland and roads, Has good driving and through performance, it can adapt to complex anddifficult road conditions such as paddy fields, marshes, and muddy field roads. The specific size can be customized according to your needs. Strong carrying capacity, strong climbing ability, simple operation and convenient maintenance.


ModelHCD500FL
EngineSingle cylinder, four stroke, air cooling
Displacement270cc
Net Power3600rpm,6.6kw
Fuel Tank6.5L
Loading Capacity500Kg
Track Width180mm
Weight358Kg
External dimensions1890×730×1500mm
Max.Travel Speed0-3.5km/h
Max.Gradeability20°
Platform Ground Clearance205mm
Hydraulic pressure20MPa
Pump TypeDouble gear pump
Working TypeSelf Loading and Unloading
Oil tank capacity19L
Hydraulic OilN46
Bucket Capacity0.25m³
